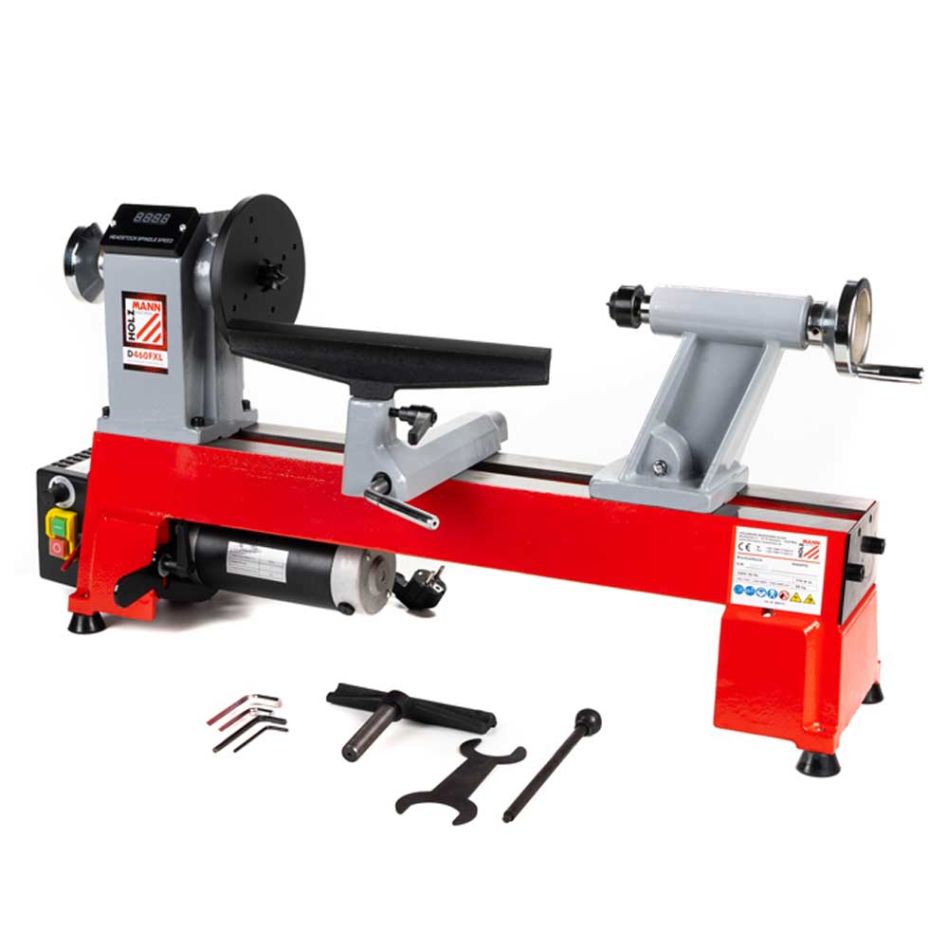

Holzmann D460FXL Variable Speed Woodturning Lathe Digital Tachometer M33 Spindle
Holzmann D460FXL Variable Speed Woodturning Lathe Digital Tachometer M33 Spindle

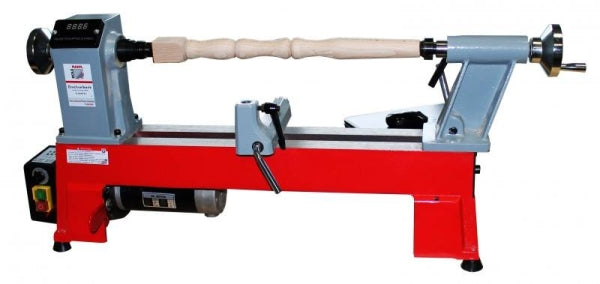

The Holzmann D460FXL woodturning lathe is a compact, variable-speed lathe designed for bowl turning, plate work, and precision spindle turning. Its large turning diameter over the bed allows machining of wide workpieces such as plates, while the continuously variable speed control ensures smooth and accurate operation across different materials and turning stages.
Key Features
- Large turning diameter over the bed – ideal for plates and bowls
- Continuously variable speed control with three speed ranges
- Integrated digital tachometer for precise speed monitoring
- Comfortable operation with quick-adjust tool rests
- Optional 550 mm bed extension (up to 1,000 mm between centres)
- Spindle / tailstock bore: 10 mm
- Industry-standard M33 spindle thread
Technical Specifications
Motor
- Voltage: 230 V
- Motor power S1: 500 W
- Motor power S6: 770 W
Turning Capacity
- Distance between centres: 460 mm
- Centre height: 153 mm
- Quill travel: 55 mm
Speed
- 450 – 1,250 rpm
- 1,250 – 2,800 rpm
- 1,500 – 3,450 rpm
Spindle & Tailstock
- Spindle thread: M33 DIN 800
- Tailstock taper: MT2 / MK2
Dimensions & Weight
- Machine dimensions (L × W × H): 830 × 270 × 410 mm
- Net weight: 38 kg
- Gross weight: 40 kg
Shipping Dimensions
- 840 × 460 × 300 mm

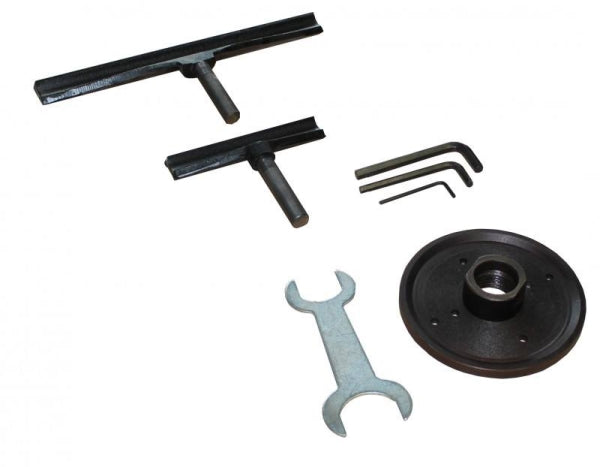

What’s Included
- Holzmann D460FXL woodturning lathe
- Long tool rest
- Short tool rest
- Faceplate (planar disk)
- Live centre (trailing grain tip)
- 4-prong drive centre
- Operating tools
Condition: New
Warranty: 3 Years
